Chassis Mount Wirewound Resistors, Commercial Power,Aluminum Housed, Heatsink

It has excellent heat dissipating capability by using heat sink design on aluminum case, Wirewound resistors or Film resistors will be filled in aluminium case with molded or sand instuction.

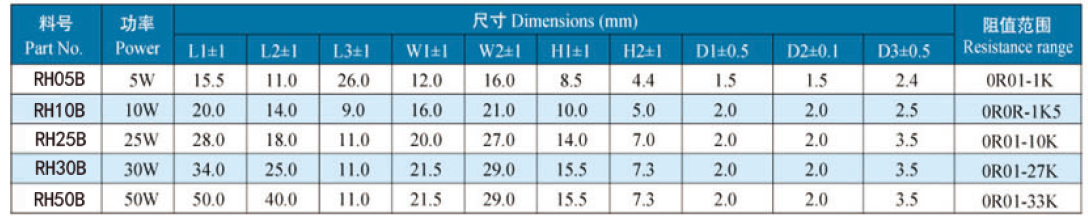

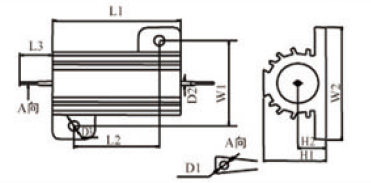

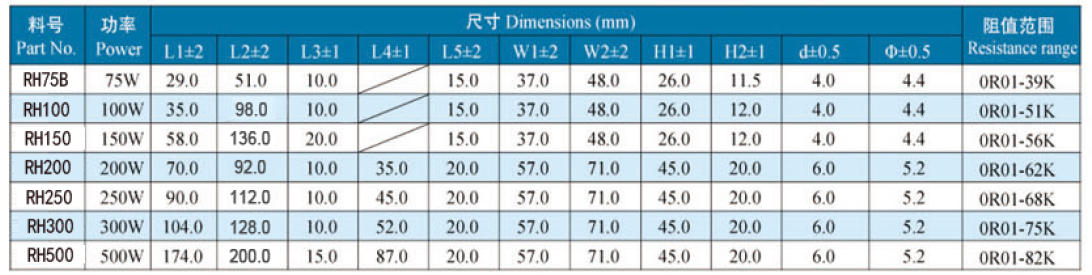

Dimensions:

Features:

1. Rated Power: 5W, 10W, 25W, 50W, 75W, 100W, 150W, 200W, 300W, 500W
2. Wide range of values from 0.05 Ω to 82 kΩ
3. Temperature coefficient of resistance: ± 10-300 ppm/°C
4. Resistance tolerance:± 1%,± 2%,± 5%
5. Operating Temperature Range: -55°C to +275°C
6. Non-inductive is available

Jingdacheng Electronics(JDC) is a leading power resistors manufacturer in China, and we are always focusing on providing various resistors and loading solutions since it was established in 1997. With 24 years industry experiences, JDC has a professional team for resistor designing, manufacturing and quality control, and most of our managements have been working for JDC at least 10 years. Even approved by ISO9001:2014, JDC started proceeding a very high standard (Japan JIS) of manufacturing and quality inspection since we built a long partner cooperation with Japan IWAKI MUSEN in 2013. Now, JDC is providing many resistors and solutions for some top500 companies, Such as: Huawei, Yaskawa, Panasonic, Midea, etc.
