Dynamic Braking Resistor for suitable for high-power, high-current braking equipment, rail transportation, new energy

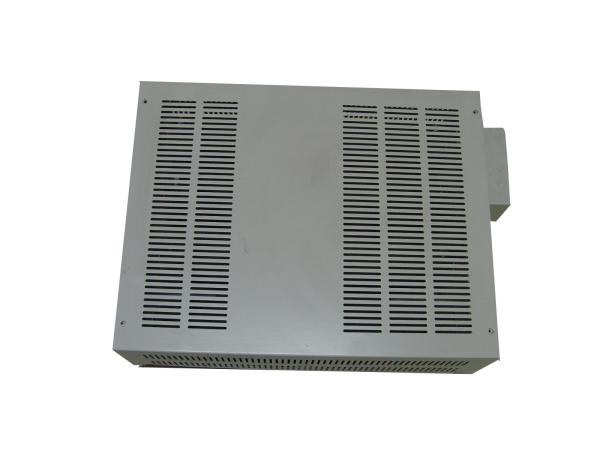

Dynamic Braking Resistor is mainly assembled by electrically heated tube resistors, suitable for high-power, high-current braking equipment, rail transportation, new energy, laboratory testing equipment, elevators, cranes and other energy dissipation braking circuit of invertors.

Product Features
1. Rated power range: 1KW-10KW
2. Rated voltage range: ≤1.2KV
3. Resistance range: 2R-1KR
4. Dielectric strength: AC2.5KV 50Hz/5s
5. IP Protection: IP20
6. Vibration: 0.5g
7. Temperature coefficient: ≤400ppm/°C
8. Element material: 0Cr25Al5
9. Advantages: applicable to relatively harsh environment
