Tubular vitreous enamel wirewound resistor is a cylindrical ceramic tube at both ends clips to fixed terminals. Ceramic tube winding copper nickel or nickel-chromium alloy resistance wire. Surface coated with glazed porcelain, after high temperature treatment, the resistor dried and insulation fixed, then fitted with fixed foot frame.

Features:

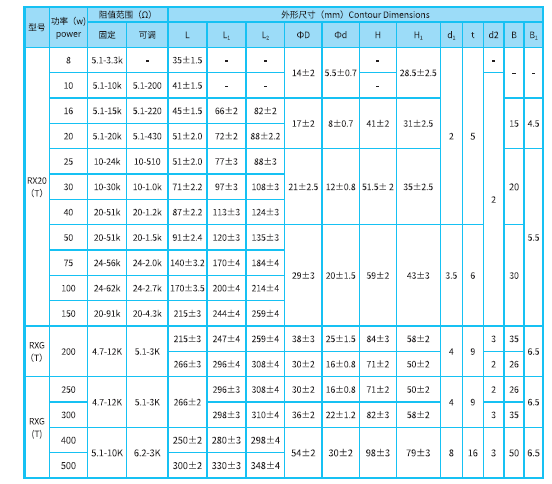

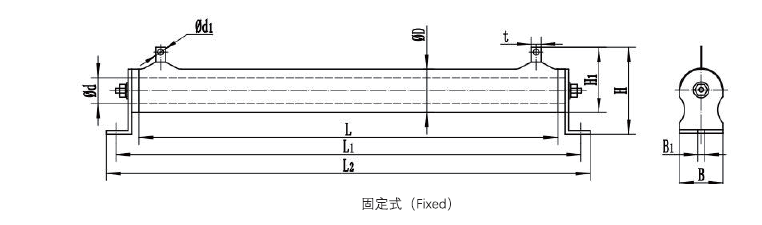

Dimensions:

Jingdacheng Electronics(JDC) is a leading power resistors manufacturer in China, and we are always focusing on providing various resistors and loading solutions since it was established in 1997. With 24 years industry experiences, JDC has a professional team for resistor designing, manufacturing and quality control, and most of our managements have been working for JDC at least 10 years. Even approved by ISO9001:2014, JDC started proceeding a very high standard (Japan JIS) of manufacturing and quality inspection since we built a long partner cooperation with Japan IWAKI MUSEN in 2013. Now, JDC is providing many resistors and solutions for some top500 companies, Such as: Huawei, Yaskawa, Panasonic, Midea, etc.
