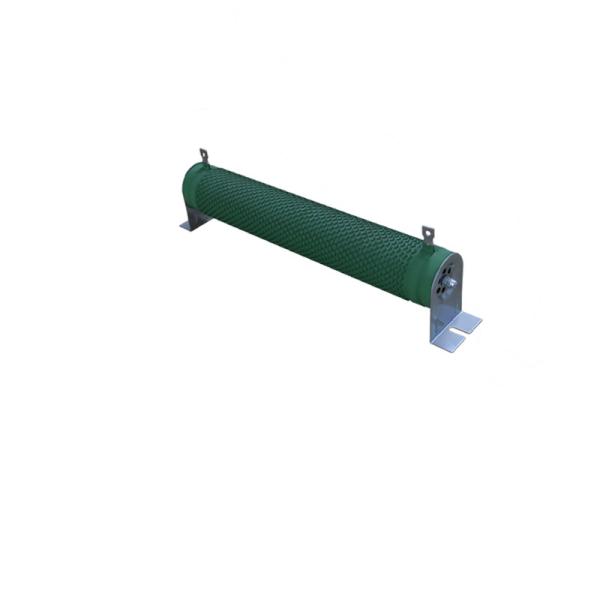

Fixed Tubular Wirewound Resistor, High Power, Silicone Coated

Fixed Tubular Wirewound Resistor supports the use of numerous taps, has low impedance, and can be fabricated in various shapes to support a wide range of applications.

Construction:

• A tubular ceramic with two terminals.
• A ceramic tubular is wound with wave-shaped alloy ribbon.
• Terminal bands are spot welded after installation on the core.
• A resistance-alloy ribbon wire is crimped and edgewound onto the core.
• Non-flammable resin insulation is applied after cooling and drying through a temperature process.
• The resistance value range is relatively low due to alloy material limitations.

Features:

1. Rated power range: 50W-2,500W

2. Operating voltage range: <1.2kV

3. Rated resistance range: 1R-10KR

4. Resistance tolerance: ±5%, ±10%

5. Dielectric strength: AC3KV 50Hz/5s

6. Fixed, tapped styles, or adjustable type are available

7. Special terminals are available for unusual applications

Dimensions:

Applications:

1. Load test

2. Equipment discharge

3. Automated control and inverter's energy loss brake.
