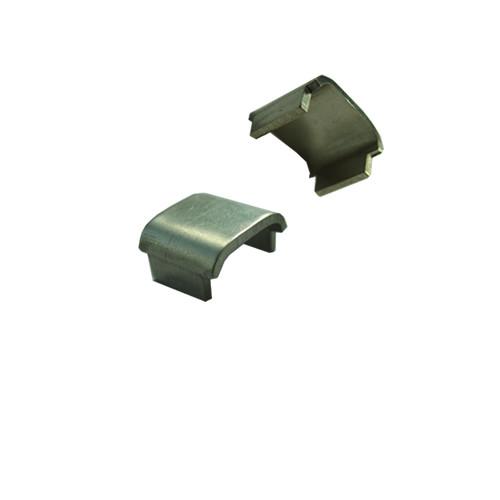

Low Ohm Shunt Resistors is also known as current detection alloy resistor, current sensing resistor, sampling shunts, current induction shunts.

The sampling resistance is divided into current sampling and voltage sampling. For current sampling, a resistor with smaller resistance value is connected in series, while for voltage sampling, a resistor with larger resistance value is connected in parallel. The function of sampling resistance is to convert current into voltage signal for current measurement. In the actual circuit, it is connected in series with the load resistor.

Features :

1. Sustain high temperature. Tolerance ±1%,±2% and ±5%.
2. Low resistance 0.1mΩ to 10mΩ. Rated Power 1W ~ 7W with low inductance.

Jingdacheng Electronics(JDC) is a leading power resistors manufacturer in China, and we are always focusing on providing various resistors and loading solutions since it was established in 1997. With 24 years industry experiences, JDC has a professional team for resistor designing, manufacturing and quality control, and most of our managements have been working for JDC at least 10 years. Even approved by ISO9001:2014, JDC started proceeding a very high standard (Japan JIS) of manufacturing and quality inspection since we built a long partner cooperation with Japan IWAKI MUSEN in 2013. Now, JDC is providing many resistors and solutions for some top500 companies, Such as: Huawei, Yaskawa, Panasonic, Midea, etc.
