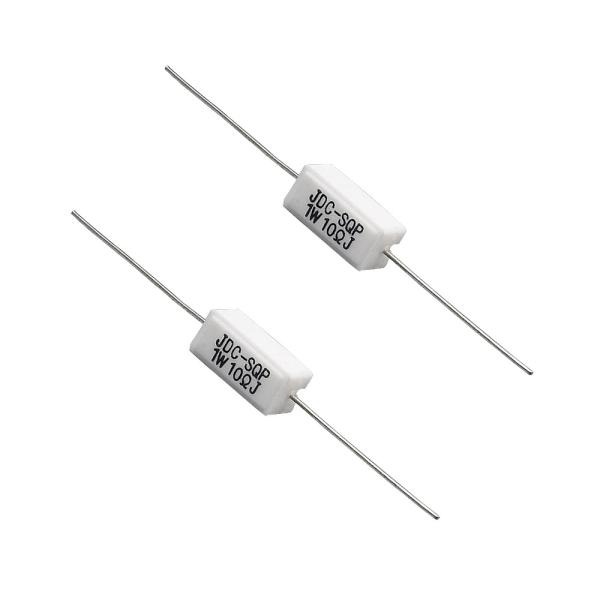

Horizontal Ceramic Power Resistor for Power electronics circuits, Power supplies

Features:

• High performance for power required applications.
• Low cost, space saving, RoHS compliant with 100% lead free.
• High power to size ratio, Special inorganic potting compound.
• Ceramic case provide high thermal conductivity in a fireproof package.
• Direct mounting on printed circuit board, Circuit board lock-in mounting tabs available.

Dimensions:

Descriptions:

With the extended resistance range and high-temperature rating, the resistors can be specified for operation in harsh environments. SQP Cement Wirewound resistors feature a resistance range from 0.1Ω to 3KΩ, while SQP Cement Film Resistor have a resistance range of 80Ω to 150KΩ.

SQP Cement resistor's feature ideal specifications for high volume and high-temperature applications. Frequently used in power supplies, motor controllers, and automotive applications, these products can be custom tailored to individual needs.

Standard tolerances for both devices are to ±5%, with TCRs ≤300ppm. JDC is equipped to design and produce custom components to meet many design and reliability demands.

Electrical Performance:

Jingdacheng Electronics(JDC) is a leading power resistors manufacturer in China, and we are always focusing on providing various resistors and loading solutions since it was established in 1997. With 24 years industry experiences, JDC has a professional team for resistor designing, manufacturing and quality control, and most of our managements have been working for JDC at least 10 years. Even approved by ISO9001:2014, JDC started proceeding a very high standard (Japan JIS) of manufacturing and quality inspection since we built a long partner cooperation with Japan IWAKI MUSEN in 2013. Now, JDC is providing many resistors and solutions for some top500 companies, Such as: Huawei, Yaskawa, Panasonic, Midea, etc.
