Grading resistor for capacitor, cement wirewound

In electronic circuits, when two electrolytic capacitors are used in series, there is often a large resistance with the same resistance value in parallel next to each capacitor, the large resistance is usually above 2W power, and the parallel resistance at both ends of the capacitor is called grading resistor. This resistance is commonly used in 380V circuit, because the voltage resistance of electrolytic capacitor is generally low, in order to meet the needs of high voltage use, the electrolytic capacitor will be used in series to improve the voltage resistance to solve the problem.

Features:

• Wide Range of resistance
• Low TCR available
• High Tolerances available
• RoHS Compliant
• Custom Built Design and values availabl

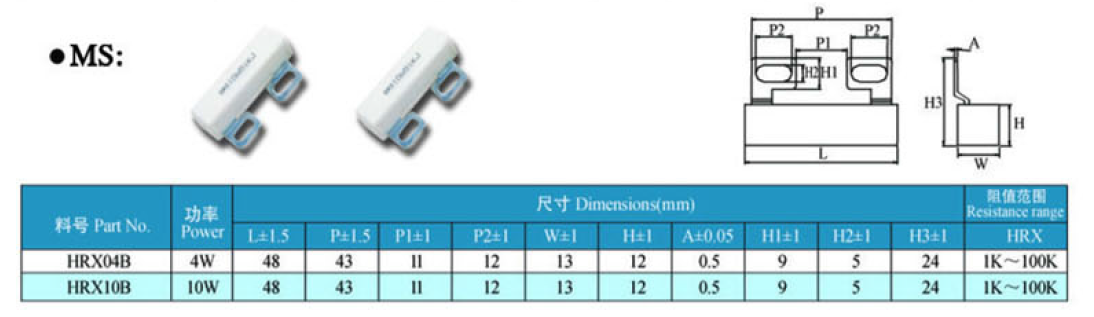

Dimensions:

Jingdacheng Electronics(JDC) is a leading power resistors manufacturer in China, and we are always focusing on providing various resistors and loading solutions since it was established in 1997. With 24 years industry experiences, JDC has a professional team for resistor designing, manufacturing and quality control, and most of our managements have been working for JDC at least 10 years. Even approved by ISO9001:2014, JDC started proceeding a very high standard (Japan JIS) of manufacturing and quality inspection since we built a long partner cooperation with Japan IWAKI MUSEN in 2013. Now, JDC is providing many resistors and solutions for some top500 companies, Such as: Huawei, Yaskawa, Panasonic, Midea, etc.
