    High Power Ceramic Wirewound Resistors , 40W 80W Inverter Braking Resistor

    Ask Lasest Price
    Brand Name : JDC
    Model Number : BKG
    Certification : ROHS
    Price : US$0.8/PCS-US$2.2/PCS
    Payment Terms : T/T, L/C, Western Union, Paypal
    Supply Ability : 500Kpcs per Month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    High Power Ceramic Wirewound Resistors , 40W 80W Inverter Braking Resistor

    High Power Ceramic Wirewound Resistor for inverter braking


    Features:

    • High load power
    • Low TCR and noise
    • Good heat dissipation and high insluation

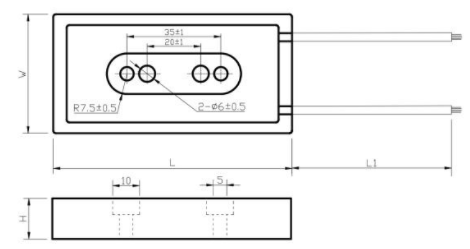

    Dimensions:


    TypeRated power (w)Resistance range(Ω)Tolerance ±(%)Max Wording Voltage(V)
    Max Overload
    Voltage(V)
    外形尺寸
    Dimension (mm)
    L±1.5W±1.0H±1.0H±3.0W1±0.2
    BKG400.1~1K1(F)
    2(G)
    5(J)
    10(K)
    150500592614240.65
    BKG800.1~1K150500904515240.65

    Electrical Performance:


    Inspection itemRequirementTest method
    Solder abilitySoldering Area ≥90%260±5℃ ,2±0.5 seconds
    Withstand voltageNo breakdown, arc flying phenomenon500VAC,5s
    Temperature coefficient≤±250×10-6/℃Evironment temperau+100℃
    Resistance to sold,heat△R≤±(1%R+0.05Ω)350±5℃ ,3.5±0.5 seconds
    Over loadNo visible damage, △R≤±(1%R+0.05Ω)10 times,5s
    Terminal tensile strengthNo visible damage, △R≤±(1%R+0.05Ω)10N,10s
    Temperature ChangeNo visible damage, △R≤±(2%R+0.05Ω)-55℃~+200,3 Cycles
    VibrationNo visible damage, △R≤±(2%R+0.05Ω)10Hz~500Hz,50m/s²,30min
    Damp heat steady stateNo visible damage, △R≤±(5%R+0.1Ω)40±2℃,RH(90~95)%,96h
    EnduranceNo visible damage, △R≤±(10%R+0.1Ω)25℃,Ur,1000h
