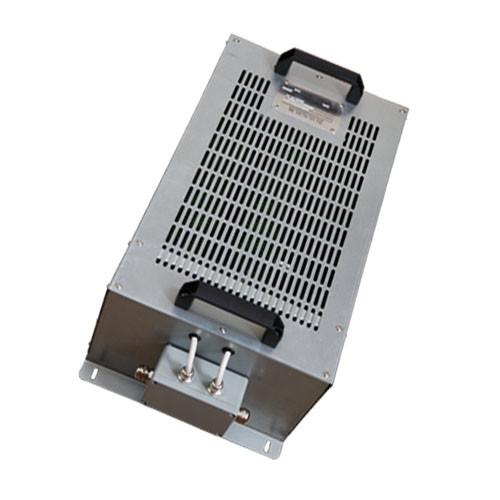

JDC Braking Resistor BR series uses different resistor element to meet different application requirement, comman resistor element include wirewound resistor, stainless steel resistor and alunimium housed resistors, it is widely used in elevators, tower cranes, cranes, hoists, belt conveyors, oilfield kowtowing machines,etc.

Features:

• IP rating: IP20/IP23

• Short-term overload capacity: 10 times power consumption for 5 seconds, 7 times power consumption for 10s

• Packing: carton + PE packaging

• Power range: 1KW-100KW

• Voltage range: 0V-1410V

• Resistance range: 1Ω-1KΩ (±5%)

• Withstand voltage: AC2500V/1min 50Hz

• Max temperature rise: 375°C, short time/repetitive 40%ED

• Temperature protection: 125℃ temperature control normally closed swith

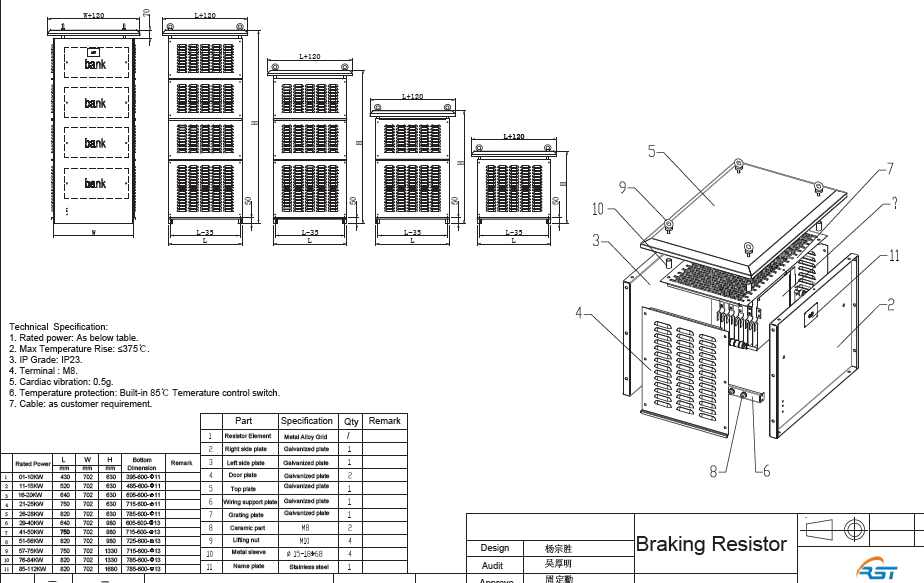

Drawing:
